Repair Procedures: Removal

  1. Remove the tire.
  2. Disconnect the wheel speed sensor connector (A).
    Fig 1: Locating Wheel Speed Sensor Connector
    G12329919Courtesy of KIA MOTORS AMERICA, INC.
  3. Loosen the bearing bolts (A) and then remove the hub bearing assembly.

    Tightening Torque:

    88.2 - 107.8 N.m (9.0 - 11.0 kgf.m, 65.0 - 79.5 lb.ft)

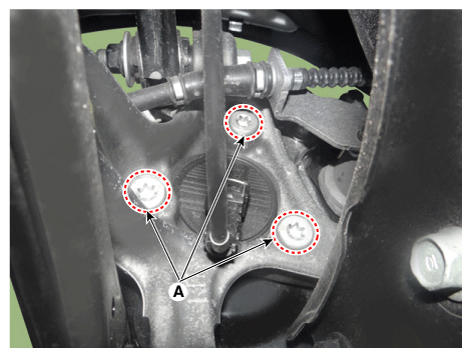

    Fig 2: Locating Bearing Bolts
    G12329920Courtesy of KIA MOTORS AMERICA, INC.
