Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the side crash pad switch assembly.

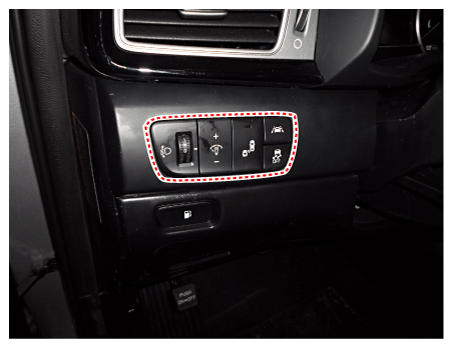

    Fig 1: Locating Side Crash Pad Switch Assembly
    G12329924Courtesy of KIA MOTORS AMERICA, INC.
  4. Check the continuity between the switch terminals as the ESP OFF switch is engaged.
Fig 2: Checking Continuity Between Switch Terminals
G12329925Courtesy of KIA MOTORS AMERICA, INC.
