Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Be careful not to bend or scratch the trim and panels.

1. Remove the front door scuff trim.

   (Refer to Interior Trim - "DOOR SCUFF TRIM ")

2. Remove the hood latch release handle (A).

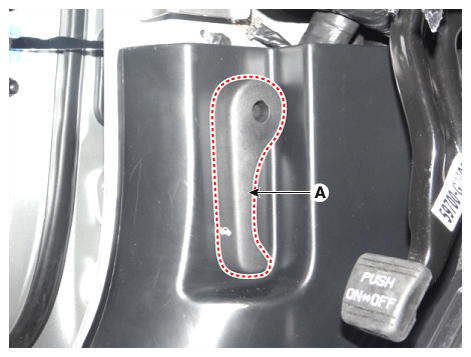

   Fig 1: Locating Hood Latch Release Handle

   Courtesy of KIA MOTORS AMERICA, INC.
3. Carefully remove the front door body side weatherstrip.
4. Using a remover, remove the cowl side trim (A).

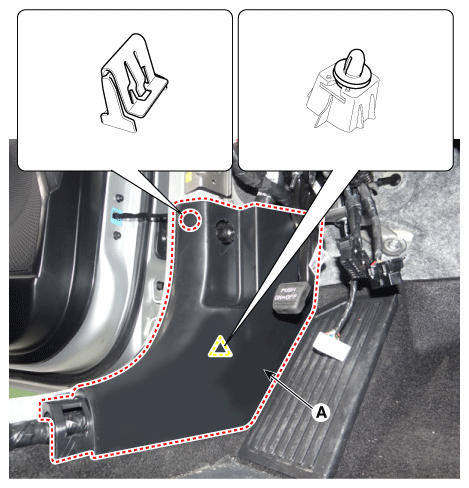

   Fig 2: Removing Cowl Side Trim

   Courtesy of KIA MOTORS AMERICA, INC.
5. Install in the reverse order of removal.

Information

Replace any damaged clips.
