Antenna Status Check

Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel.
Select the "Antenna Status Check".

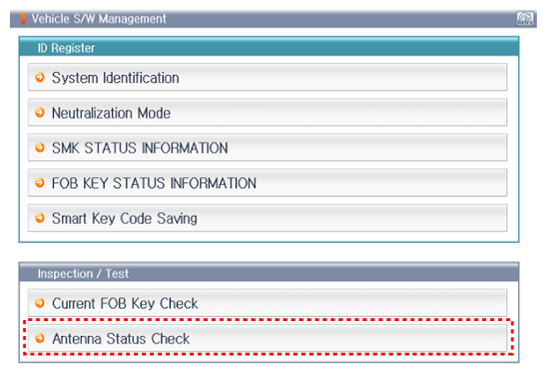

Fig 1: Screen Display - Select Antenna Status Check
Courtesy of KIA MOTORS AMERICA, INC.
After IG ON, select the "Antenna Status Check".

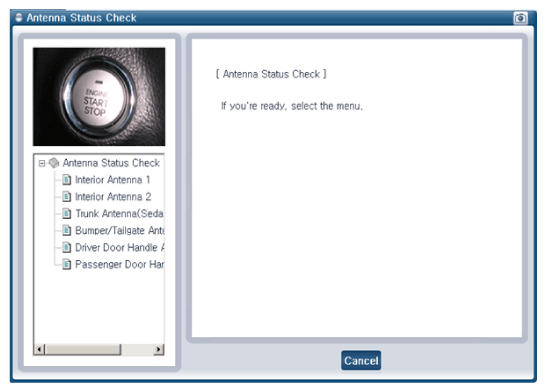

Fig 2: Screen Display - Select Antenna Status Check, After IG ON
Courtesy of KIA MOTORS AMERICA, INC.
Set the smart key near the related antenna and operate it with a KDS/GDS.

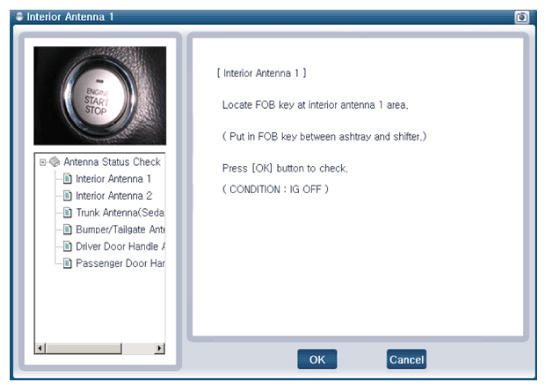

Fig 3: Screen Display - Interior Antenna 1, Press OK Button
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Screen Display - Interior Antenna 2, Press OK Button
Courtesy of KIA MOTORS AMERICA, INC.
If the smart key runs normal, the related antenna, smart Key (Transmission, reception) and exterior receiver are normal.
Antenna status
