Repair Procedures: Removal

Information

In case of bad quality or poor focus, be sure to check the camera lens surface condition and foreign materials.

1. Disconnect the negative (-) battery terminal.
2. Remove the liftgate trim.

   (Refer to Body - "LIFTGATE TRIM ")

3. Remove the rear wiper motor.

   (Refer to Rear Wiper/Washer - "REAR WIPER MOTOR ")

4. Loosen the rear view camera mounting nut (A).

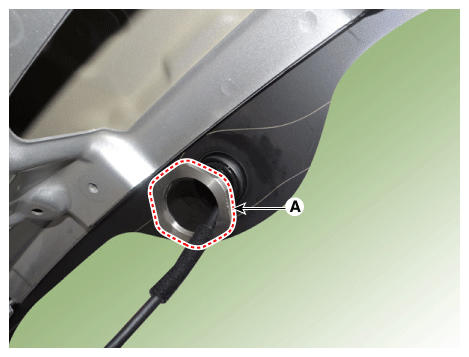

   Fig 1: Locating Rear View Camera Mounting Nut

   Courtesy of KIA MOTORS AMERICA, INC.
5. Remove the rear view camera assembly (B) after removing the rear view camera pad (A).

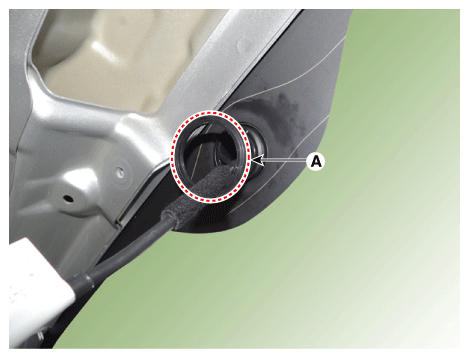

Fig 2: Locating Rear View Camera Pad

Courtesy of KIA MOTORS AMERICA, INC.

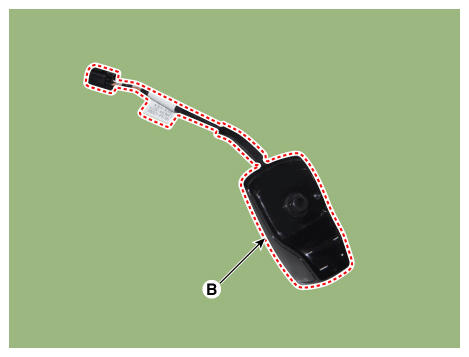

Fig 3: Locating Rear View Camera Assembly

Courtesy of KIA MOTORS AMERICA, INC.
