Resolver Calibration

Perform the resolver calibration using the KDS/GDS after replacing or reinstalling the below components.

• Hybrid Drive Motor installation
• Hybrid Starter Generator (HSG) installation
• Motor Control Unit (MCU) replacement
• Engine clutch system replacement

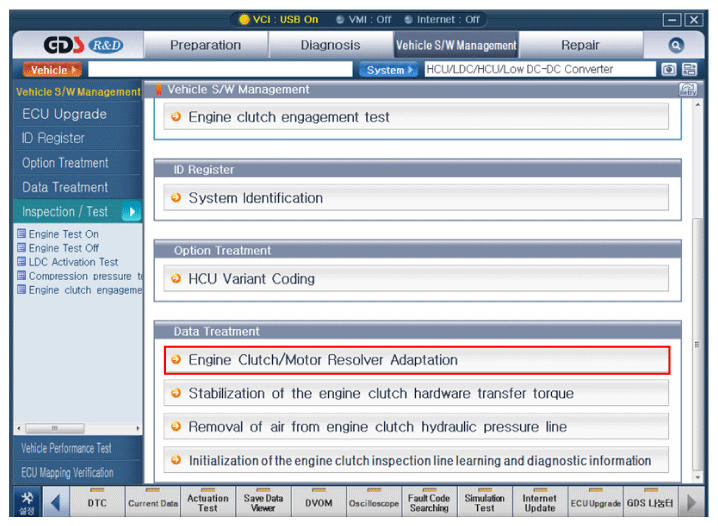

Fig 1: Screen Display - Engine Clutch/Motor Resolver Adaptation

Courtesy of KIA MOTORS AMERICA, INC.
