Engine Control System - 5.0L
>>
Injector Drive Box (IDB)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

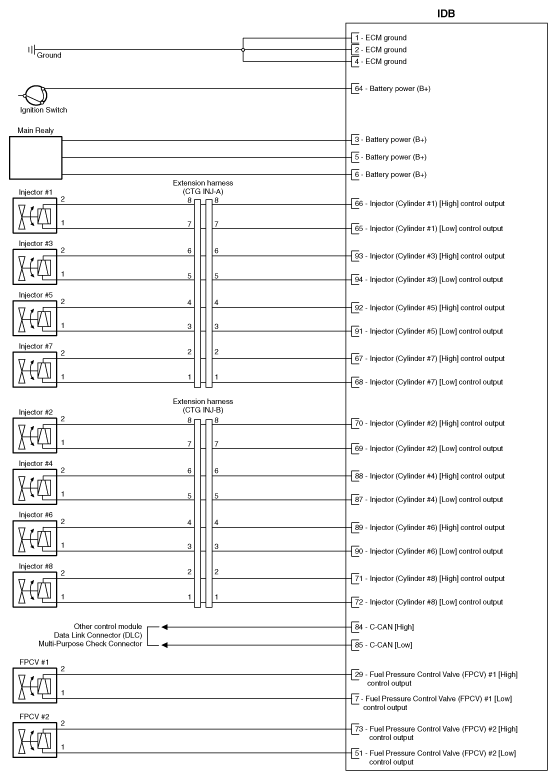

Fig 1: IDB System Circuit (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

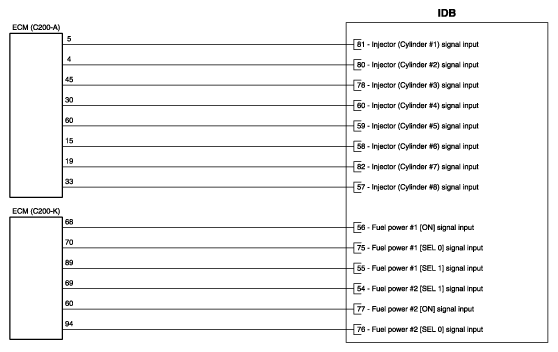

Fig 2: IDB System Circuit (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
