Signal Waveform

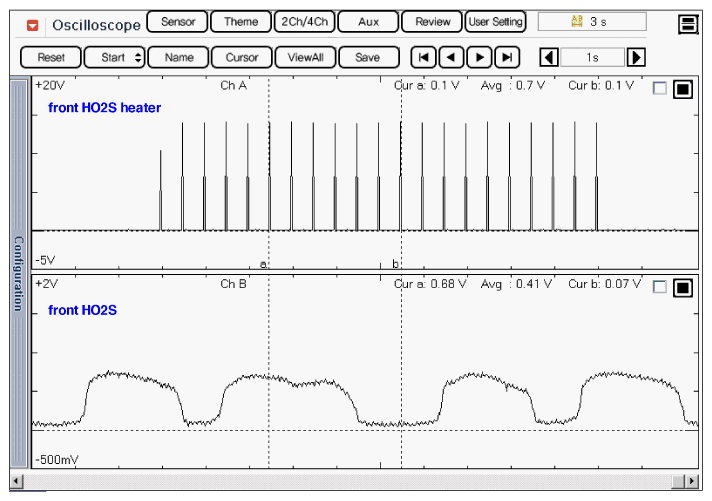

Fig 1: Display - Front HO2S (Upper) And Heater (Lower) Signal Waveform (Idle)
G11802903Courtesy of KIA MOTORS AMERICA, INC.

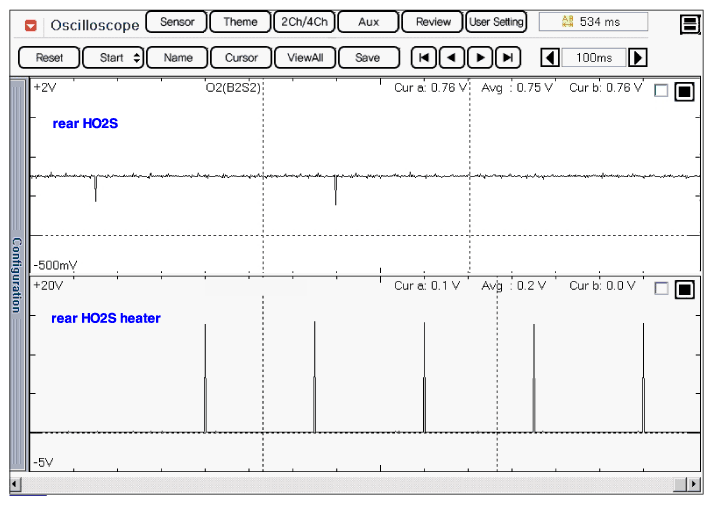

Fig 2: Display - Rear HO2S (Upper) And Heater (Lower) Signal Waveform (Idle)
G11802904Courtesy of KIA MOTORS AMERICA, INC.

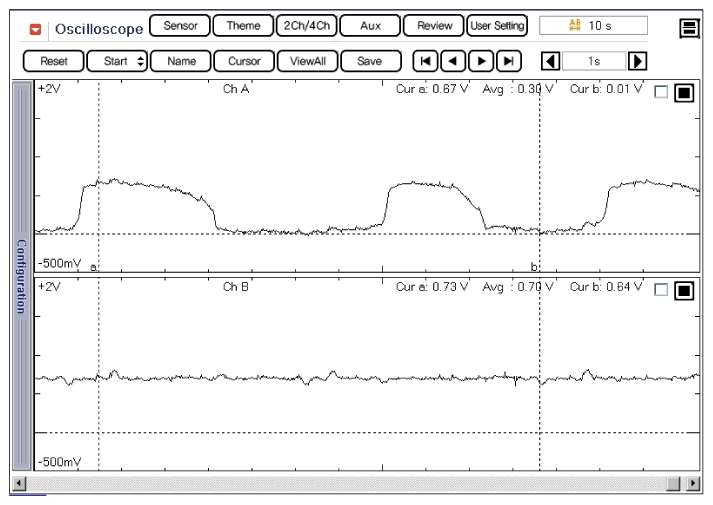

Fig 3: Display - Front HO2S (Upper) And Rear HO2S (Lower) Signal Waveform
G11802905Courtesy of KIA MOTORS AMERICA, INC.
