Repair Procedures: Inspection

  1. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  2. Check for continuity between terminals (A) of the power trunk switch and replace the switch in case of no continuity.

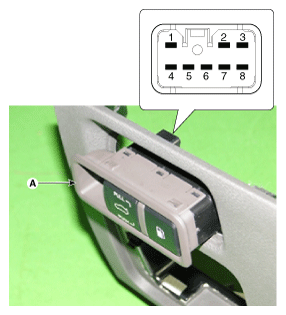

Fig 1: Power Trunk Switch Connector Terminals
G11803864Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Power Trunk Switch Connector Terminals Continuity Chart
G11803865Courtesy of KIA MOTORS AMERICA, INC.
