Components and Components Location: Components

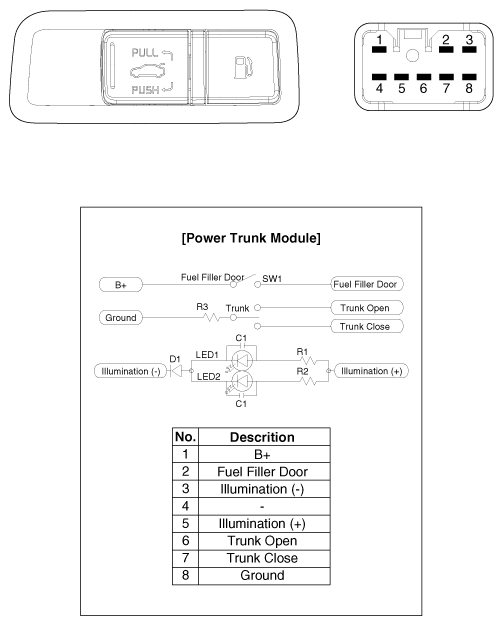

Fig 1: Power Trunk Open Close Switch Circuit Diagram

G11803863

Courtesy of KIA MOTORS AMERICA, INC.
