Components and Components Location: Component

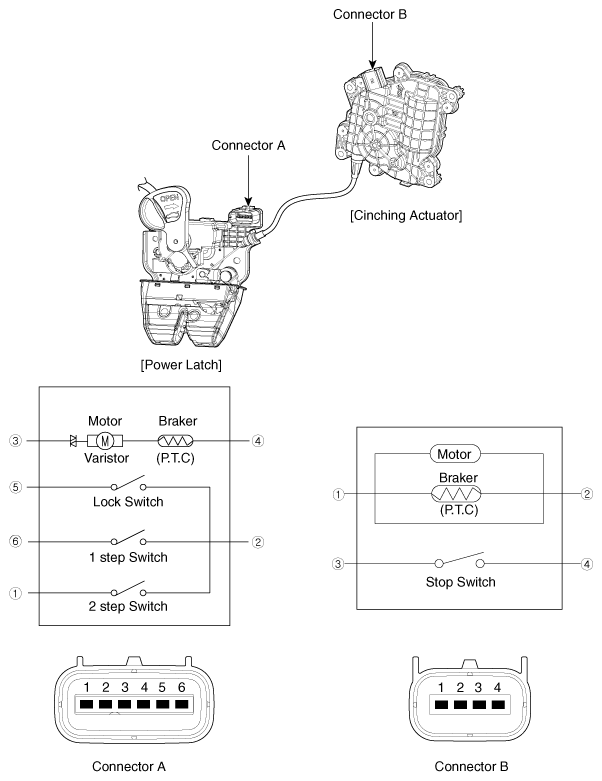

Fig 1: Power Latch Assembly Circuit Diagram

G11803850

Courtesy of KIA MOTORS AMERICA, INC.
