Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Forte5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clutch actuator.

    (Refer to Dual Clutch Transmission Control System - "CLUTCH ACTUATOR ASSEMBLY ")

  2. Remove the input speed sensor (A) by loosening the bolts after disconnecting the connector (B).

    Tightening Torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

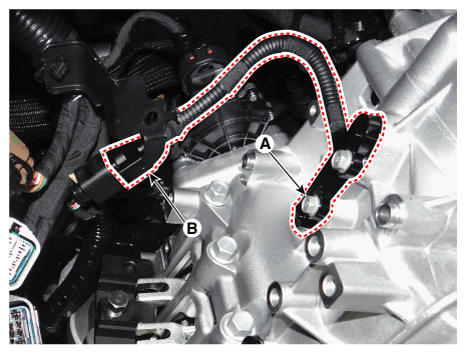

    Fig 1: Locating Input Speed Sensor And Connector With Bolts
    G12163551Courtesy of KIA MOTORS AMERICA, INC.
