Control System Logic

WARNING: This page is about a different car, the 2018 Kia Forte5. However, it is still accessible from the selected car via links, so may be relevant.

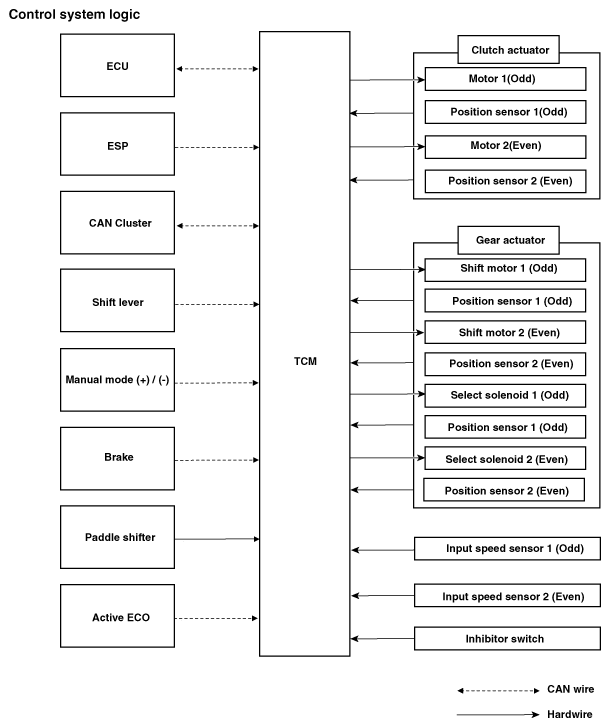

Fig 1: Dual Clutch Transmission Control System Diagram
G12163494Courtesy of KIA MOTORS AMERICA, INC.
