Repair Procedures: Installation

WARNING: This page is about a different car, the 2018 Kia Forte5. However, it is still accessible from the selected car via links, so may be relevant.

Install the drive belt (A).

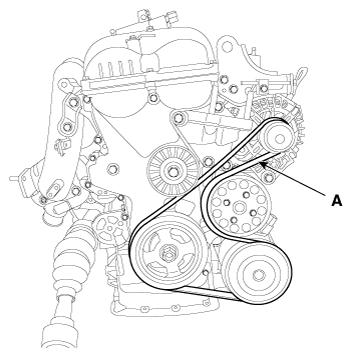

Fig 1: Locating Drive Belt
Courtesy of KIA MOTORS AMERICA, INC.
Adjust tension by tightening the alternator tension adjust bolt (B) and then install the mounting bolts (A).
Tightening Torque

12mm (0.47in) bolt:

19.6 - 26.5 Nm (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb-ft)

14mm (0.55in) bolt:

29.4 - 41.2 Nm (3.0 - 4.2 kgf.m, 21.7 - 30.4 lb-ft)

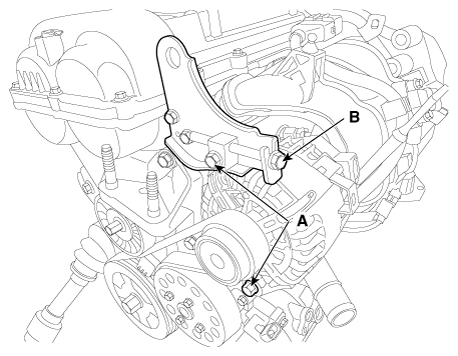

Fig 2: Locating Drive Belt Tension & Adjusting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
