Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the air duck (A).

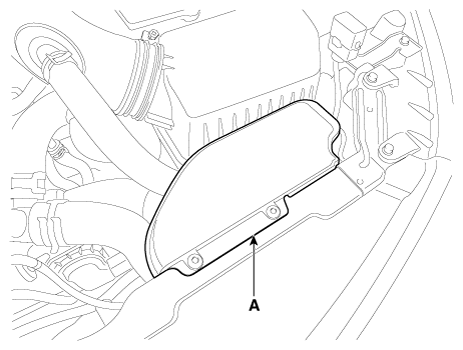

    Fig 1: Air Duck
    G12161435Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the RCV control solenoid valve connector (A) and vapor hoses (B).
  4. Remove the RCV control solenoid valve (D) by loosening the mounting bolts (C).

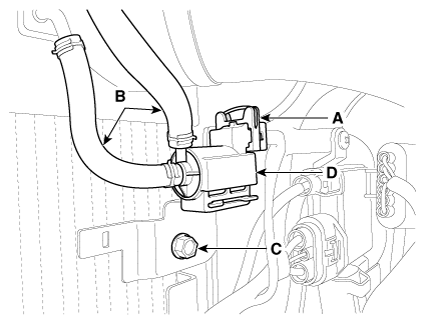

Fig 2: RCV Control Solenoid Valve, RCV Control Solenoid Valve Connector, Vapor Hoses And Mounting Bolts
G12161436Courtesy of KIA MOTORS AMERICA, INC.
