Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install in the reverse order of removal.
    NOTE: Apply the specified grease to the push rod end.

    Specified Grease  : CASMOLY L9508

    Quantity  : 0.4 - 0.8 g

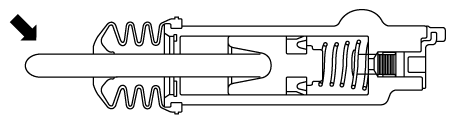

    Fig 1: Locating Specified Grease Applying On Push Rod End
    G12161547Courtesy of KIA MOTORS AMERICA, INC.
