Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transaxle assembly.

    (Refer to Manual Transaxle System - "MANUAL TRANSAXLE ")

  2. Remove the clutch cover bolts. Be careful not to be bent or twist bolts. Loosen bolts in diagonal directions.

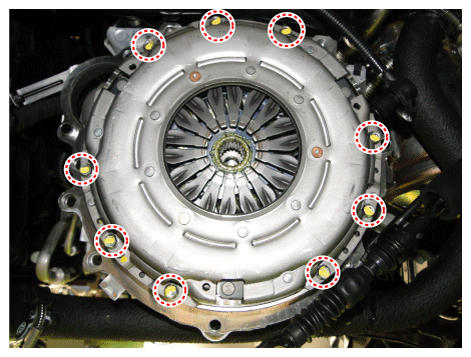

    Fig 1: Clutch Cover Bolts
    G12161521Courtesy of KIA MOTORS AMERICA, INC.
