Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Inspect diaphragm spring wear which is in contact with a clutch release bearing.
  2. Check the clutch cover and disc surface for wear or cracks.
  3. Check the clutch disc facing for slipping or oil marks.
  4. Measure the depth from a clutch facing surface to a rivet. If the measured value is less than the specification below, replace it.

    Clutch Disc Rivet Depth (A):

    0.3 mm (0.0118 in.)

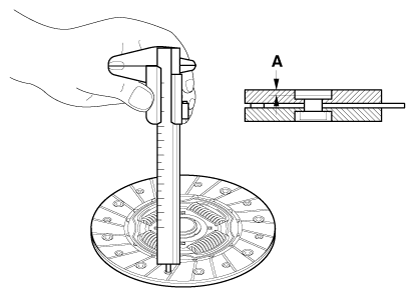

    Fig 1: Checking Clutch Disc Rivet Depth
    G12161522Courtesy of KIA MOTORS AMERICA, INC.
