Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Disconnect the back-up lamp switch connector (A).

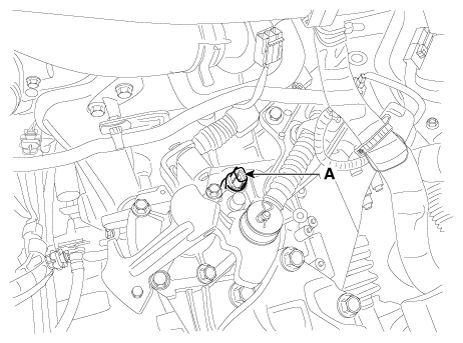

Fig 1: Locating Back-Up Lamp Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the back up lamp switch (A).
Tightening torque:

39.2 - 58.9 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

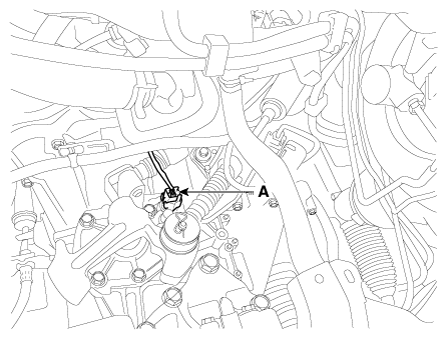

Fig 2: Locating Back Up Lamp Switch
Courtesy of KIA MOTORS AMERICA, INC.
