Repair Procedures: Replacement

  1. Remove the Crankshaft Damper Pulley.

    (Refer to Timing System - "CRANKSHAFT DAMPER PULLEY ")

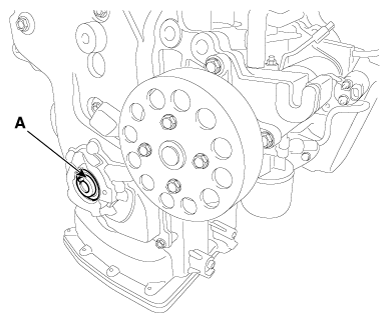

  2. Remove the front oil seal (A).
    Fig 1: Locating Front Oil Seal
    G12160772Courtesy of KIA MOTORS AMERICA, INC.

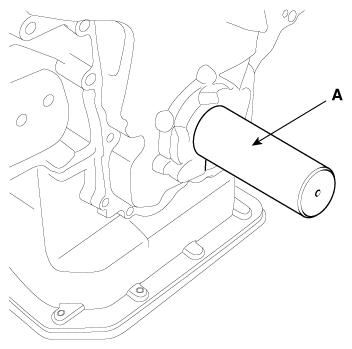

  3. Using the SST (09455-21200) (A), install a new front oil seal.
    Fig 2: Installing Front Oil Seal Using SST (09455-21200)
    G12160773Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Do not reuse the front oil seal.

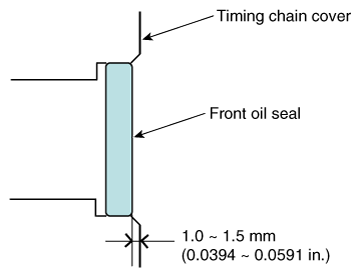

    NOTE: Insert the oil seal into the timing chain cover as displayed in image below.
    Fig 3: Checking Oil Seal Installation Dimension
    G12160774Courtesy of KIA MOTORS AMERICA, INC.
