Home >> Kia >> 2017 >> Forte5 SX, Automatic DCT Trans >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Timing System - 1.6L T >> Crankshaft Damper Pulley >> Components And Components Location >> Components

Components And Components Location: Components

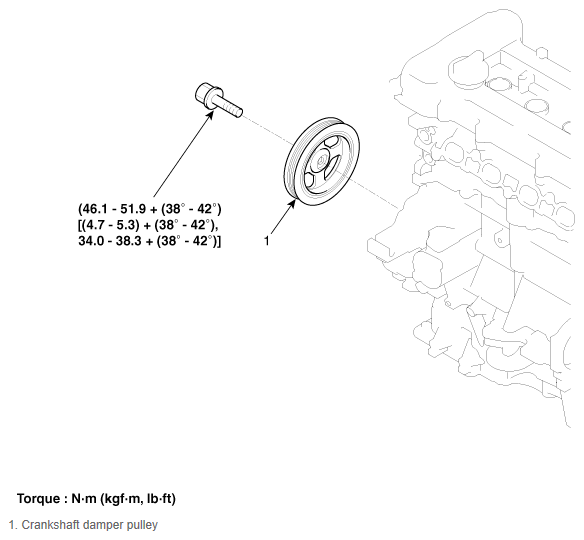

Fig 1: Locating Crankshaft Damper Pulley Components With Torque Specification

G12160764

Courtesy of KIA MOTORS AMERICA, INC.
