Charging System - 1.6L T
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

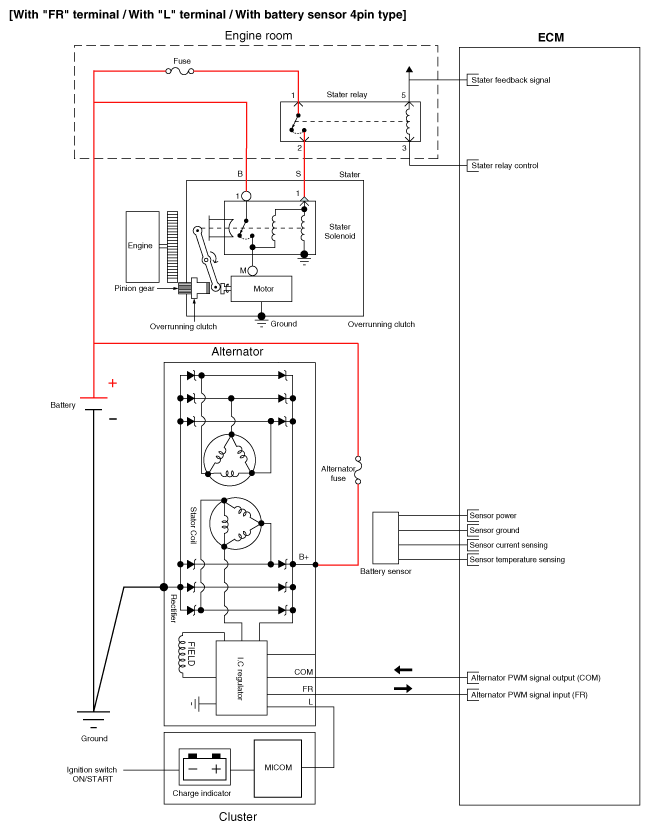

Fig 1: Charging System Circuit Diagram (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

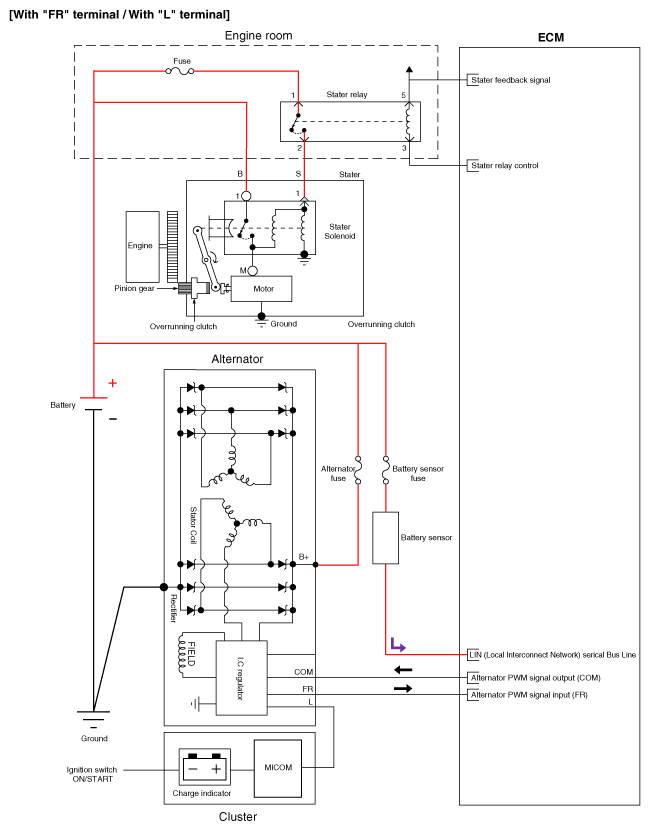

Fig 2: Charging System Circuit Diagram (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

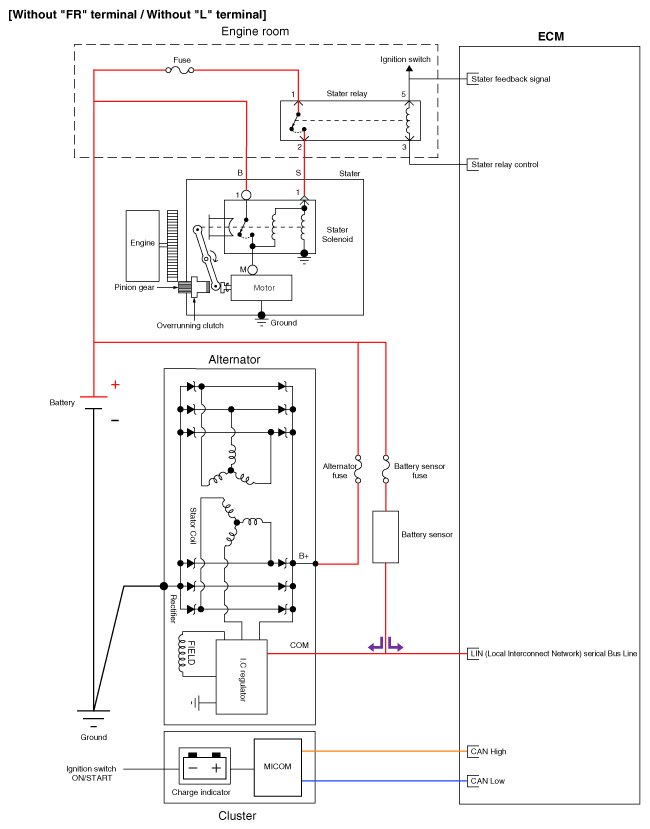

Fig 3: Charging System Circuit Diagram (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
