Hood Switch Inspection

  1. Disconnect the connector from the hood switch (A).

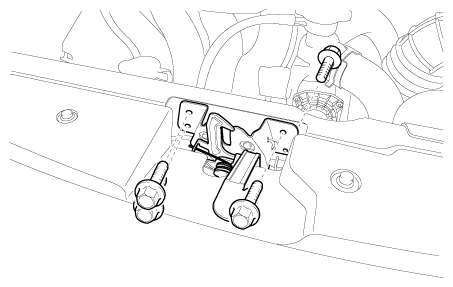

    Fig 1: Hood Switch Bolts
    G12164684Courtesy of KIA MOTORS AMERICA, INC.

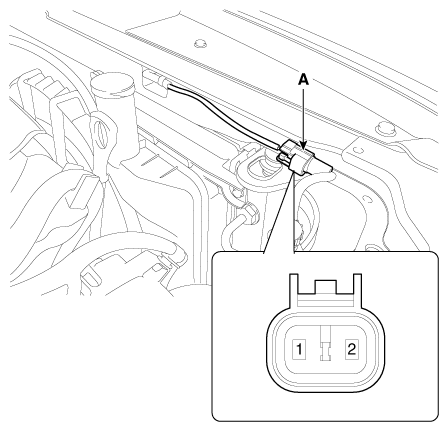

    Fig 2: Hood Switch Connector Terminals
    G12164685Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for continuity between the terminals and ground according to the table.

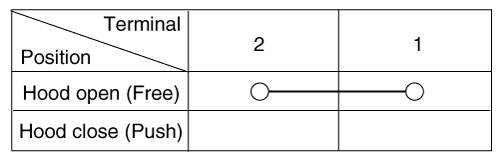

Fig 3: Hood Switch Terminals Continuity Chart
G12164686Courtesy of KIA MOTORS AMERICA, INC.
