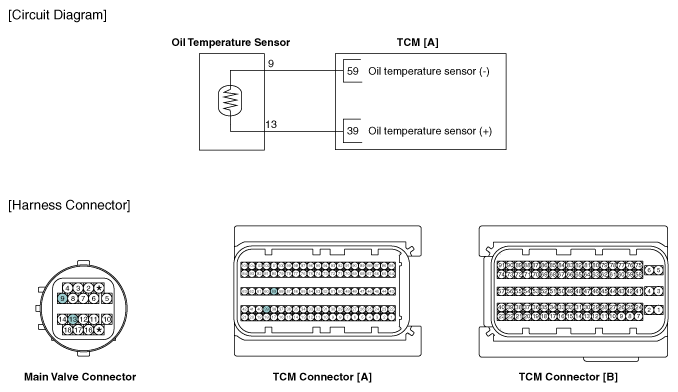

Home >> Kia >> 2017 >> Forte5 LX >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 2.0L GDI >> Oil Temperature Sensor (Main Harness) >> Schematic Diagrams >> Circuit Diagram
