Customer Complaint Analysis Check Sheet

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

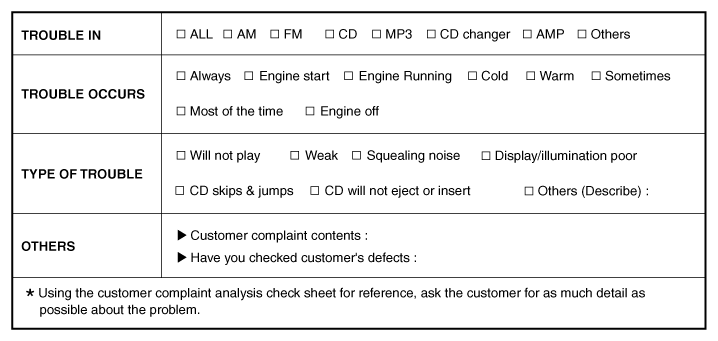

Fig 1: Customer Complaint Analysis Check Sheet

Courtesy of KIA MOTORS AMERICA, INC.

There are six areas where a problem can occur: wiring harness, the radio, the CD player, and speaker. Troubleshooting enables you to confine the problem to a particular area.

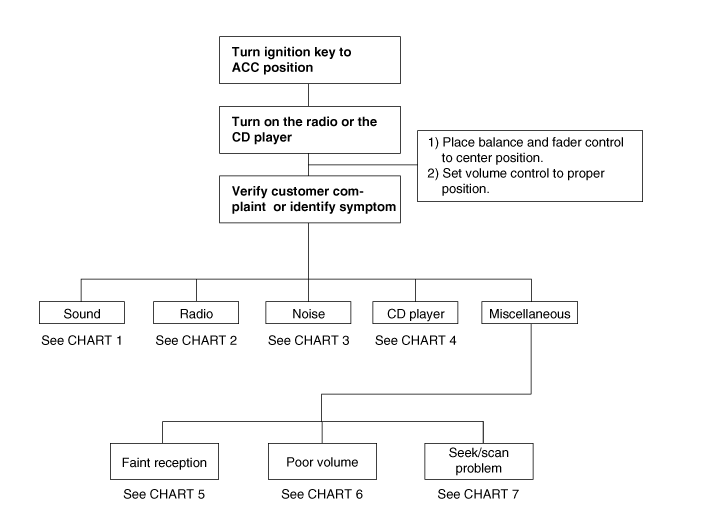

Fig 2: Multi-Media Jack Troubleshooting Flow Chart

Courtesy of KIA MOTORS AMERICA, INC.
