Vehicle S/W Management

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference
EPS Type Recognition. Ignition "ON".	Connect KDS/GDS to Data Link Connector (DLC). Perform "EPS Type Recognition" in "Vehicle S/W management" with KDS/GDS.	Fig 1 to Fig 4

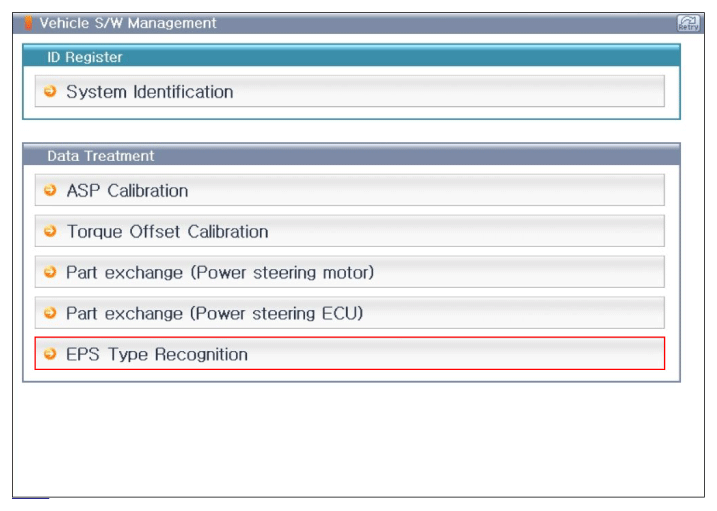

Fig 1: Screen Display - First Screen Of Vehicle S/W Management

Courtesy of KIA MOTORS AMERICA, INC.

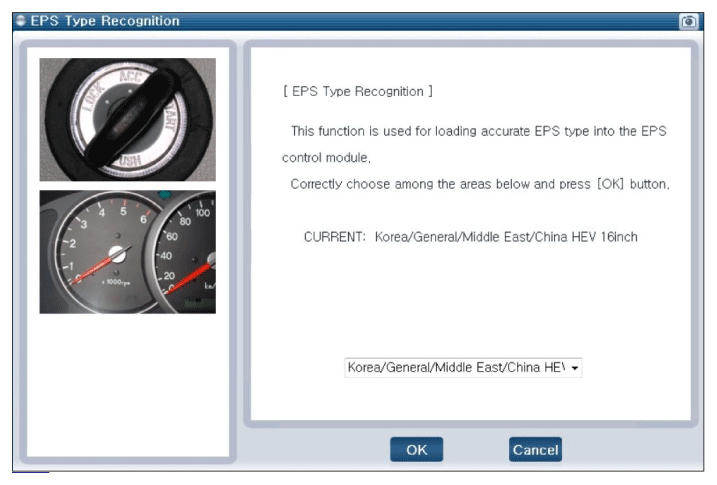

Fig 2: Screen Display - EPS Type Recognition

Courtesy of KIA MOTORS AMERICA, INC.

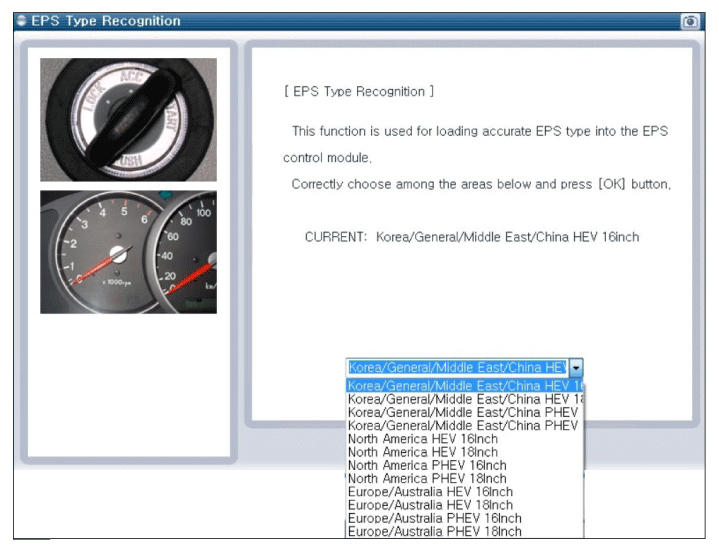

Fig 3: Screen Display - EPS Type Select

Courtesy of KIA MOTORS AMERICA, INC.

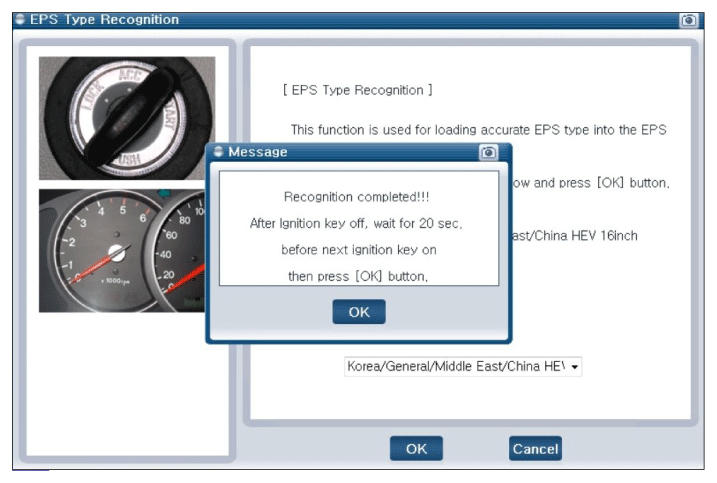

Fig 4: Screen Display - Recognition Complete

Courtesy of KIA MOTORS AMERICA, INC.
