Tweeter Speaker

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the front pillar trim.
(Refer to Body - "FRONT PILLAR TRIM ")
Using a scraper or remover, remove the tweeter speaker grill (A).
CAUTION: Take care not to scratch the crash pad and related parts.

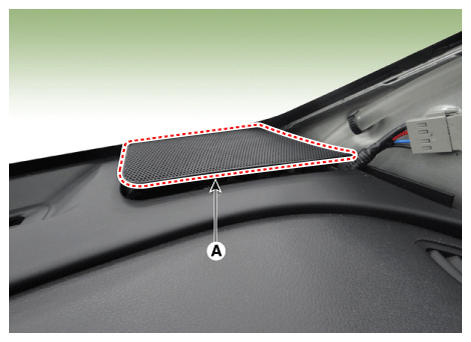

Fig 1: Locating Tweeter Speaker Grill
Courtesy of KIA MOTORS AMERICA, INC.
Remove the tweeter speaker (A) after loosening the mounting screws.

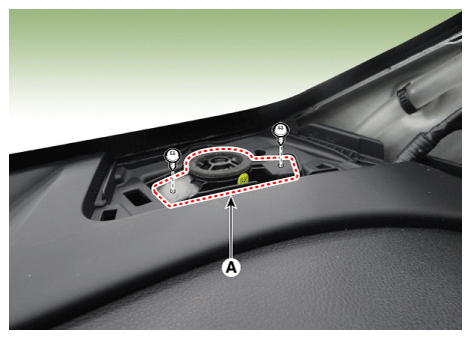

Fig 2: Locating Tweeter Speaker Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the tweeter speaker connector (A).

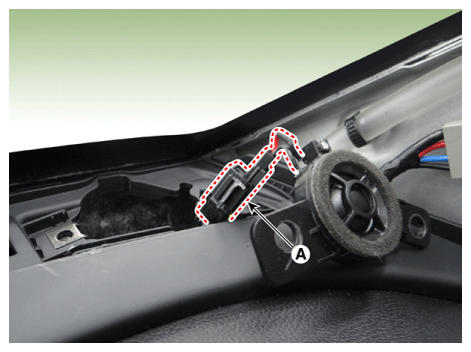

Fig 3: Locating Tweeter Speaker Connector

Courtesy of KIA MOTORS AMERICA, INC.
