Install the drive belt.

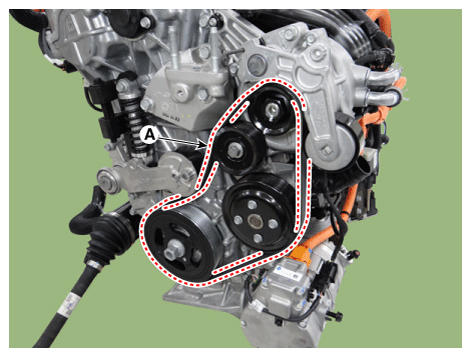

1. Install the drive belt (A).

  Fig 1: Installing Drive Belt
  Courtesy of KIA MOTORS AMERICA, INC.

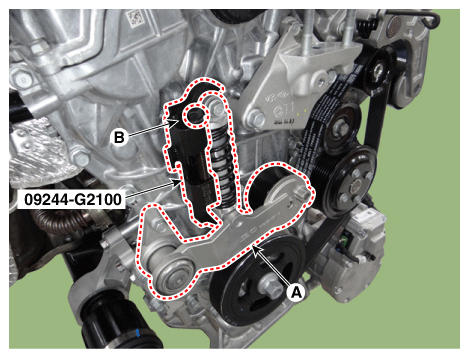

2. Remove the SST (09244 - G2100) from the hydraulic tensioner (A) by loosening the adjusting bolt (B).

  Fig 2: Removing SST (09244 - G2100) From Hydraulic Tensioner
  Courtesy of KIA MOTORS AMERICA, INC.

  NOTE: To prevent damage the hydraulic tensioner, carefully loosen belt using hydraulic tensioner tool.

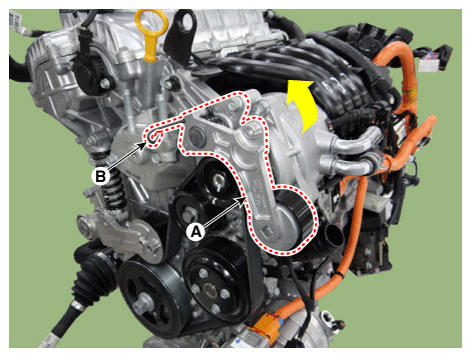

3. Using the wrench, slightly lift the mechanical tensioner (A) and then remove the stopper pin (B). Slowly place the mechanical tensioner (A).

  Fig 3: Lifting Mechanical Tensioner
  Courtesy of KIA MOTORS AMERICA, INC.
Install the engine room under cover.
(Refer to Engine And Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
