Glass Adjustment

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Information

Check the glass run channel for damage or deterioration, and replace it if necessary.

Remove the front door trim.
(Refer to Front Door - "FRONT DOOR TRIM ")

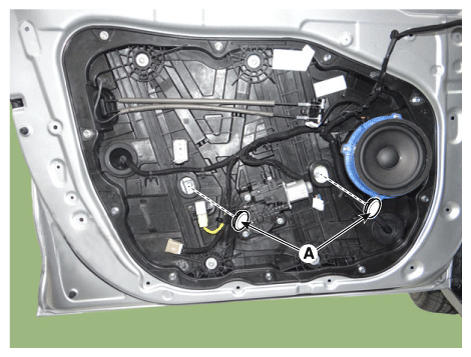

Remove the front door window glass mounting hole plug (A).

Fig 1: Removing Front Door Window Glass Mounting Hole Plug
Courtesy of KIA MOTORS AMERICA, INC.

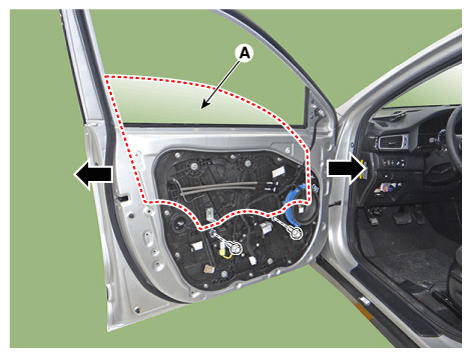

Carefully move the front door window glass (A) until the glass mounting bolts are visible, then loosen them.

Fig 2: Moving Front Door Window Glass
Courtesy of KIA MOTORS AMERICA, INC.
Check that the glass moves smoothly.
