Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the front door checker (A) mounting bolt.
Tightening Torque:

19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb.ft)

Fig 1: Loosening Front Door Checker Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Detach the clips, and then remove the front door side weatherstrip (A).

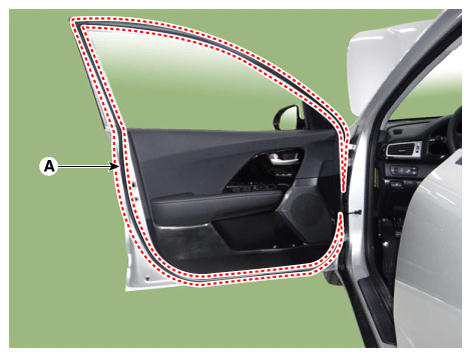

Fig 2: Removing Front Door Side Weatherstrip
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

Information

Replace any damaged clips.
