Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cooling fan (A) from cooling fan shroud.
Tightening Torque :

2.8 - 3.2 N.m (0.28 - 0.33 kgf.m, 2.0 - 2.4 lb.ft)

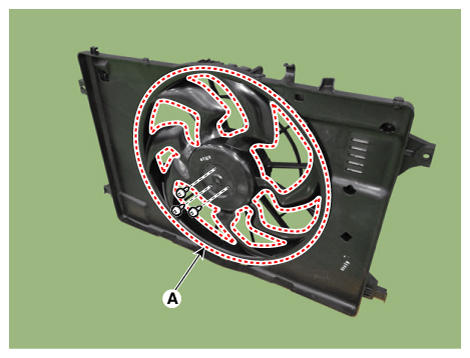

Fig 1: Removing Cooling Fan From Cooling Fan Shroud
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the cooling fan motor connector (A).

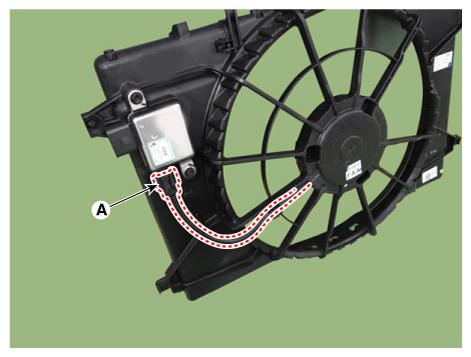

Fig 2: Disconnecting Cooling Fan Motor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the cooling fan motor (A) from cooling fan shroud.
Tightening Torque :

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

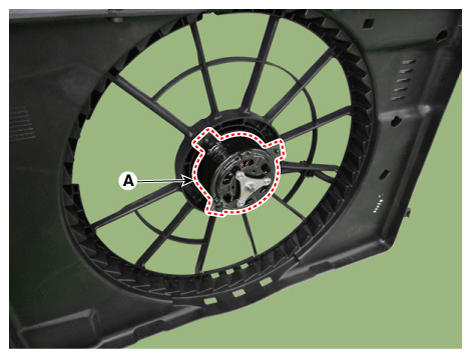

Fig 3: Removing Cooling Fan Motor From Cooling Fan Shroud (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

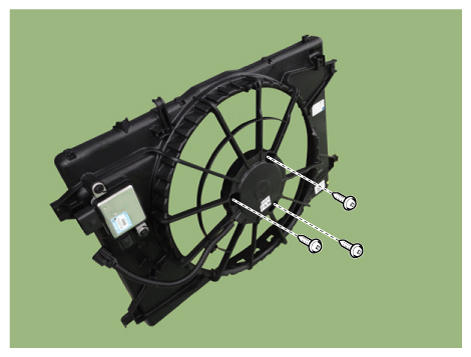

Fig 4: Removing Cooling Fan Motor From Cooling Fan Shroud (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
