Rear Power Window Switch

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

(Manual Type)

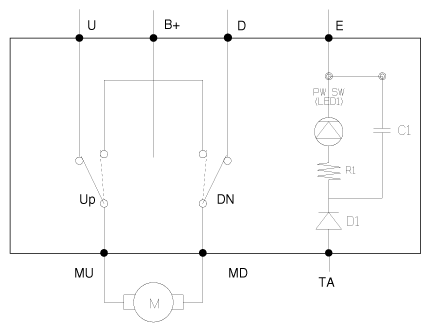

Fig 1: Rear Power Window Switch System Circuit - Manual Type

Courtesy of KIA MOTORS AMERICA, INC.

(Manual + Seat Warmer Type)

Fig 2: Rear Power Window Switch System Circuit - Manual + Seat Warmer Type

Courtesy of KIA MOTORS AMERICA, INC.

(Safety + Non-Seat Warmer Type)

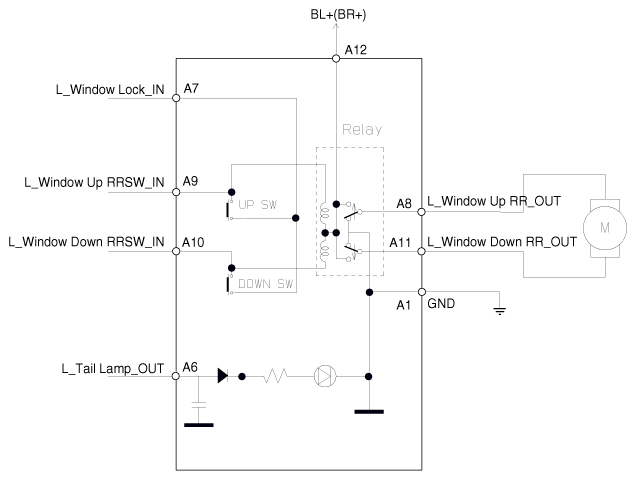

Fig 3: Rear Power Window Switch System Circuit - Safety + Non-Seat Warmer Type

Courtesy of KIA MOTORS AMERICA, INC.

(Safety + Seat Warmer Type)

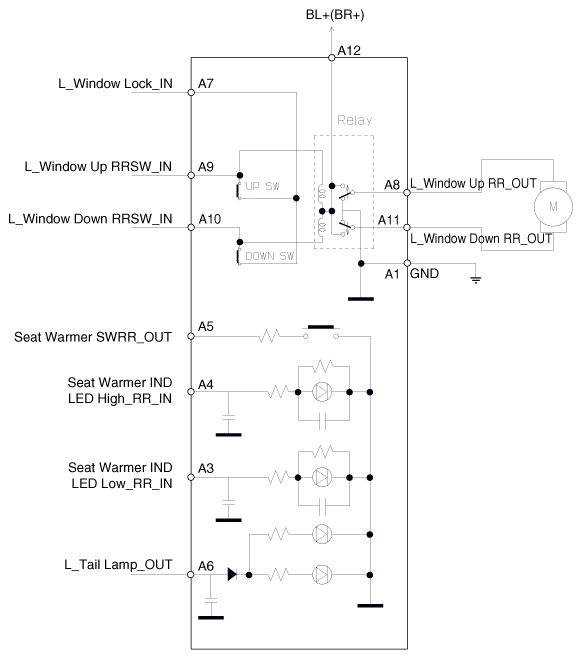

Fig 4: Rear Power Window Switch System Circuit - Safety + Seat Warmer Type

Courtesy of KIA MOTORS AMERICA, INC.
