Back-Up Lamp

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear bumper cover.

    (Refer to Body - "REAR BUMPER COVER ")

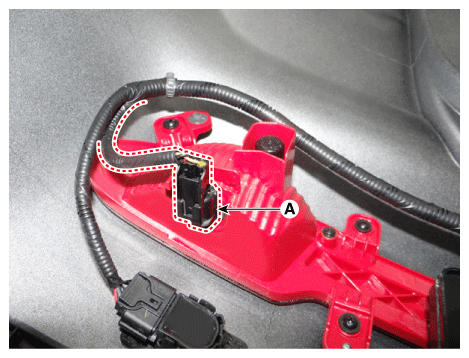

  3. Disconnect the back-up lamp connector (A).
    Fig 1: Locating Back-Up Lamp Connector
    G12334919Courtesy of KIA MOTORS AMERICA, INC.

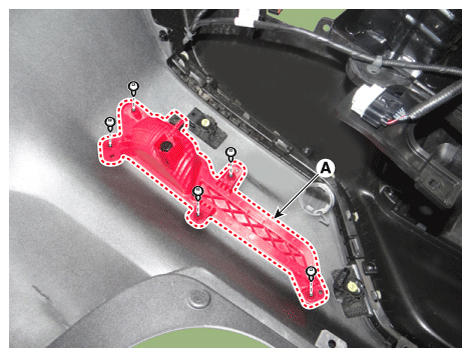

  4. Remove the back-up lamp (A) after loosening the screws.
Fig 2: Removing Back-Up Lamp Screws
G12334920Courtesy of KIA MOTORS AMERICA, INC.
