Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the license lamp assembly (A) after pressing the locking pin.

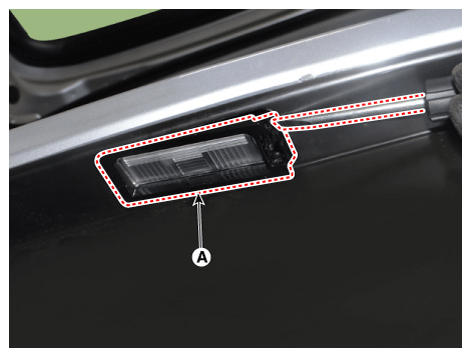

Fig 1: Locating License Lamp Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the license lamp connector (A).

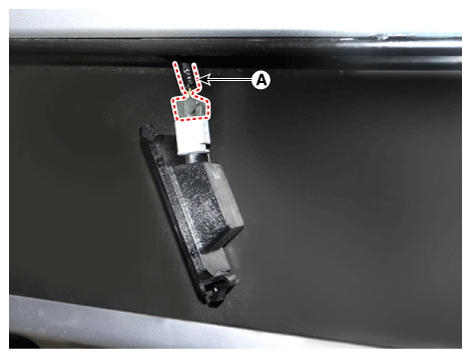

Fig 2: Locating License Lamp Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the license lamp bulb (B) after removing the license lamp socket (A).

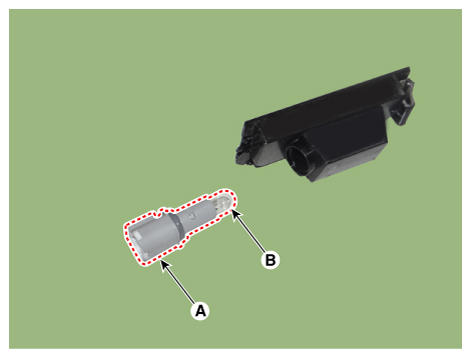

Fig 3: Locating License Lamp Bulb

Courtesy of KIA MOTORS AMERICA, INC.
