Turn Signal Lamp

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Turn the headlamp switch off.

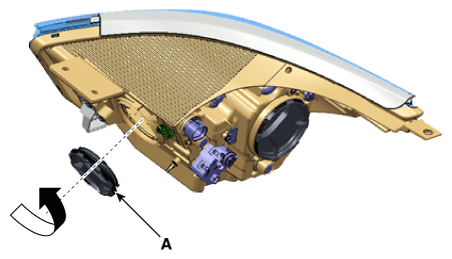

Remove the dust caps (A) from the headlamp assembly after turning in the counterclockwise direction.

Fig 1: Removing Dust Caps From Headlamp Assembly
Courtesy of KIA MOTORS AMERICA, INC.

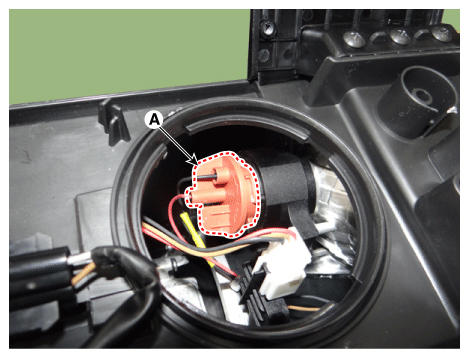

Remove the bulb socket (A) and bulb (B) from the headlamp assembly.

Fig 2: Locating Bulb Socket Bulb From Headlamp Assembly
Courtesy of KIA MOTORS AMERICA, INC.

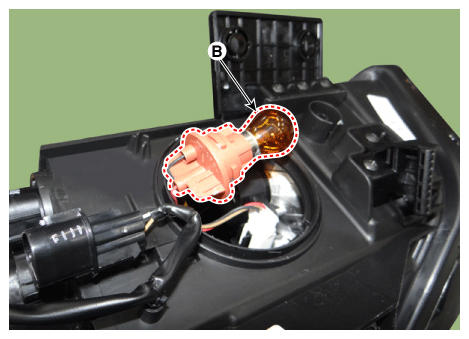

Fig 3: Locating Bulb
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
