Repair Procedures: Replacement: Ballast

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp.
  2. Remove the ballast (A) after loosening the screws.

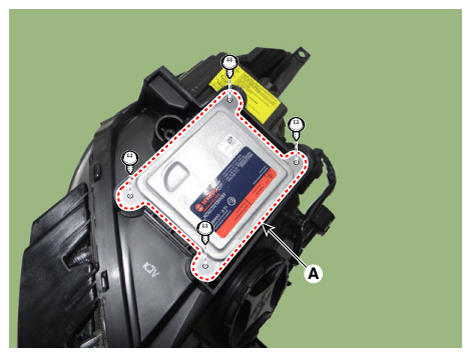

    Fig 1: Removing Ballast Screws
    G12334874Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the connectors (A) from the ballast (B).

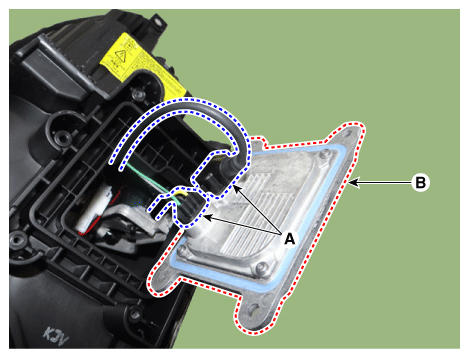

    Fig 2: Locating Connectors From Ballast
    G12334875Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
    CAUTION: Confirm the ballast installation
