Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER COVER ")

  3. Remove the front fog lamp assembly (A) after loosening the mounting screws.

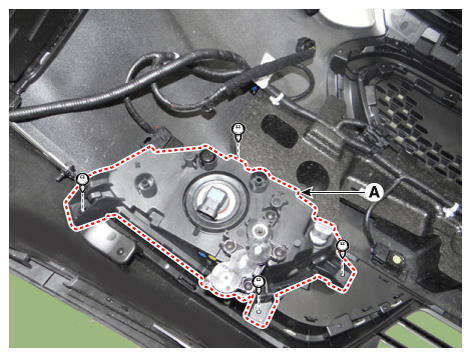

Fig 1: Removing Front Fog Lamp Assembly Mounting Screws
G12334906Courtesy of KIA MOTORS AMERICA, INC.
