Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

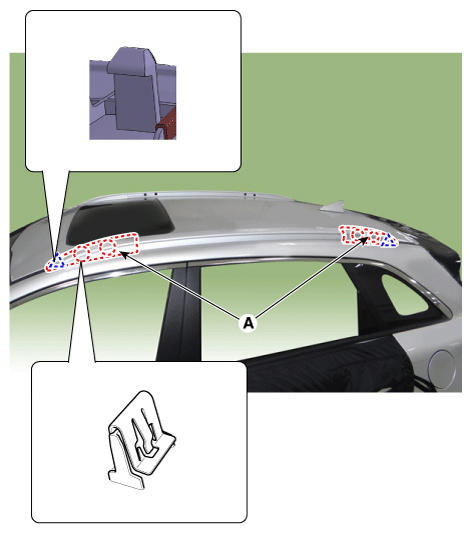

Remove the roof rack front cover and rear cover (A).

Fig 1: Removing Roof Rack Front Cover And Rear Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the roof rack cap (A).

Fig 2: Removing Roof Rack Cap
Courtesy of KIA MOTORS AMERICA, INC.

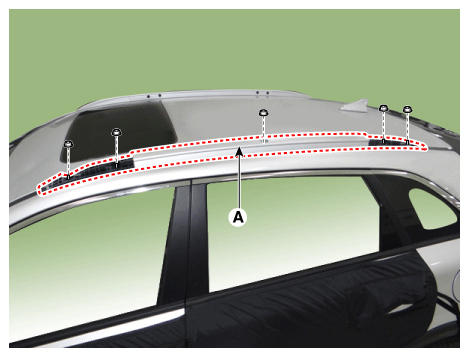

Remove the roof rack assembly (A) after loosening the nuts.
Tightening Torque:

3.9 - 4.4 N.m (0.4 - 0.45 kgf.m, 2.9 - 3.3 lb.ft)

Fig 3: Removing Roof Rack Assembly Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

Information

Replace any damaged clips.
