Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

Remove the Liftgate Upper Trim.
(Refer to Liftgate - "LIFTGATE TRIM ")

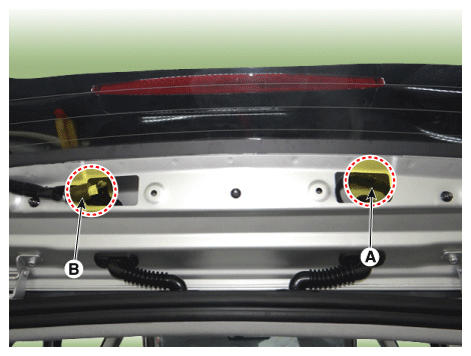

Disconnect the washer nozzle (A) and high mounted stop lamp connector (B).

Fig 1: Locating Washer Nozzle And High Mounted Stop Lamp Connector
Courtesy of KIA MOTORS AMERICA, INC.

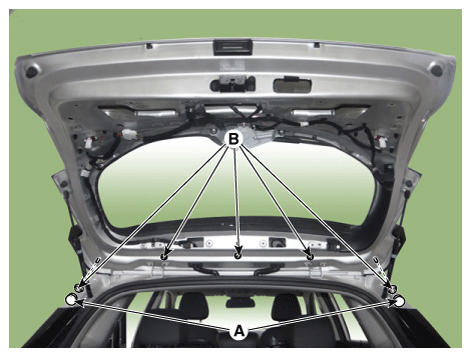

Remove the cap (A) and then loosen the rear spoiler mounting nuts (A).
Tightening Torque:

5.9 - 6.4 N.m (0.6 - 0.65 kgf.m, 4.3 - 4.7 lb.ft)

Fig 2: Loosening Rear Spoiler Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.

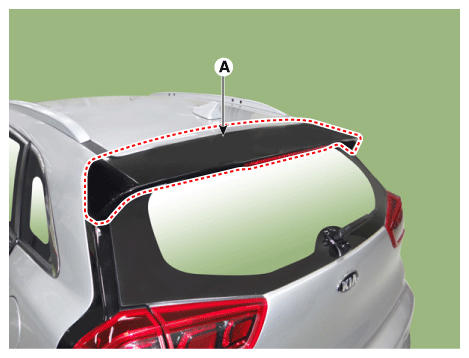

Remove the rear spoiler (A).

Fig 3: Locating Rear Spoiler

Courtesy of KIA MOTORS AMERICA, INC.

Information

Make sure the connector is connected properly.
Replace any damaged clips.
