Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")
Remove the front seat shield outer cover (A) by using a remover.
NOTE:
- Correctly remove the front seat shield outer cover to the removal procedure and direction.
- Be careful not to damage the mounting bracket and hook when removing the cover.

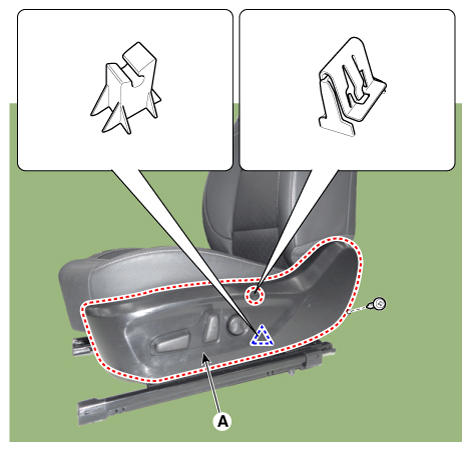

Fig 1: Removing Front Seat Shield Outer Cover By Using Remover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the front seat power switch connector (A).

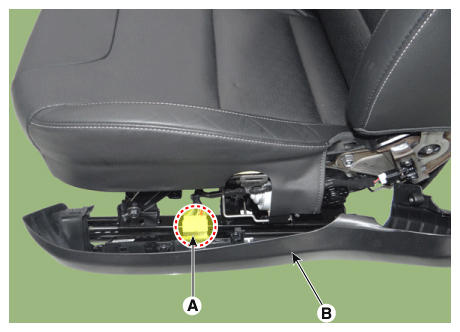

Fig 2: Locating Front Seat Power Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

Information

Make sure the fuel filler door locks/unlocks and opens/closes properly.
Replace any damaged clips.
