Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

Separate the rear seat belt lower anchor (A) after loosening the bolt.

Fig 1: Separating Rear Seat Belt Lower Anchor
Courtesy of KIA MOTORS AMERICA, INC.

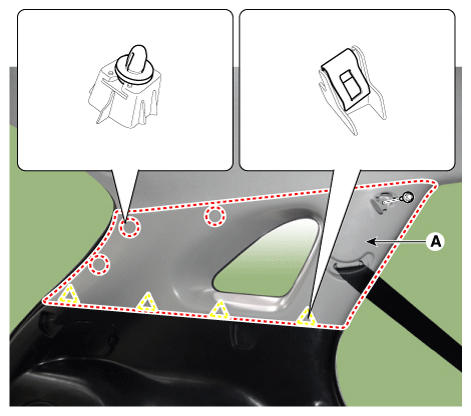

Remove the rear pillar trim (A) after loosening the mounting bolts.

Fig 2: Removing Rear Pillar Trim Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

Information

Replace any damaged clips.
