[Air Inlet]
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

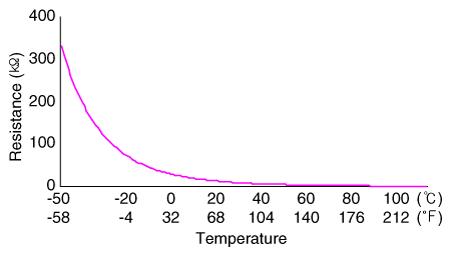

[AIR INLET] SPECIFICATIONS
| Temperature | Resistance (kΩ) | |
|---|---|---|
| °C | °F | |
| -50 | -58 | 314.9 - 344.6 |
| -40 | -40 | 181.1 - 196.0 |
| -30 | -22 | 107.5 - 115.2 |
| -20 | -4 | 65.82 - 69.77 |
| -10 | 14 | 41.43 - 43.52 |
| 0 | 32 | 26.74 - 27.83 |
| 10 | 50 | 17.67 - 18.25 |
| 20 | 68 | 11.94 - 12.24 |
| 30 | 86 | 8.214 - 8.411 |
| 40 | 104 | 5.738 - 5.918 |
| 50 | 122 | 4.082 - 4.239 |
| 60 | 140 | 2.954 - 3.087 |
| 70 | 158 | 2.172 - 2.284 |
| 80 | 176 | 1.621 - 1.715 |
| 90 | 194 | 1.227 - 1.305 |
| 100 | 212 | 0.941 - 1.006 |
| 110 | 230 | 0.731 - 0.785 |
