Engine Control System Diagnosis - 2.0L GDI (1 Of 3)
>>
DTC P0075: Intake Valve Control Solenoid Circuit (Bank 1)
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

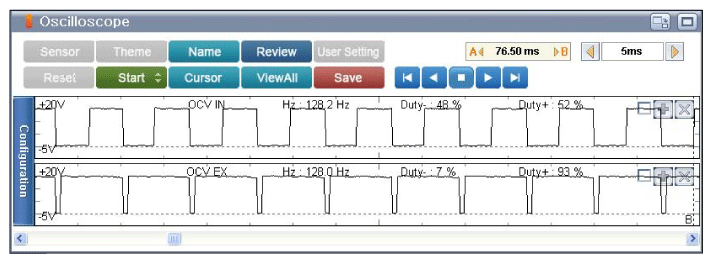

Fig 1: Screen Display - Normal Waveform Of OCV At Idle
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Screen Display - Normal Waveform Of OCV At Acceleration
Courtesy of KIA MOTORS AMERICA, INC.
