Repair Procedures: Inspection

  1. Turn the ignition switch OFF.
  2. Disconnect the intake actuator connector.
  3. Verify that the intake actuator operates to the recirculation position when connecting 12V to terminal 3 and grounding terminal 7.

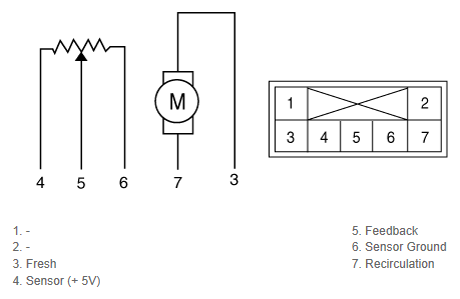

    Fig 1: Connecting 12V To Terminal 3 And Grounding Terminal 7
    G12166775Courtesy of KIA MOTORS AMERICA, INC.
  4. Connect the intake actuator connector.
  5. Turn the ignition switch ON.
  6. Check the voltage between terminal 6 and 7.

    Specification

    Door position Voltage (V) Error detecting
    Fresh 0.3 ± 0.15 Low voltage: 0.1V or less
    Recirculation 4.7 ± 0.15 High voltage: 4.9V or more
  7. If the intake actuator dones not operate well, substitute with a known-good intake actuator and check for proper operation.
  8. Replace the intake actuator if it is proved that there is a problem with it.
