Section 16 (Cylinder Block - 1.6L T)
>>
Components And Components Location
>>
Components
Components And Components Location: Components
WARNING:
This page is about a different variant/trim than selected.

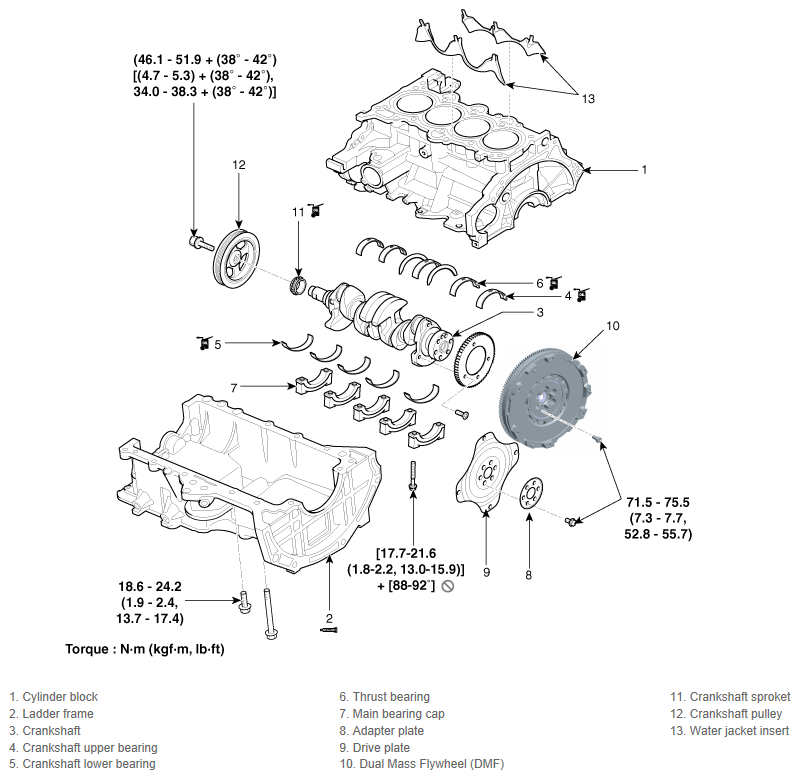

Fig 1: Cylinder Block Components With Torque Specification (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

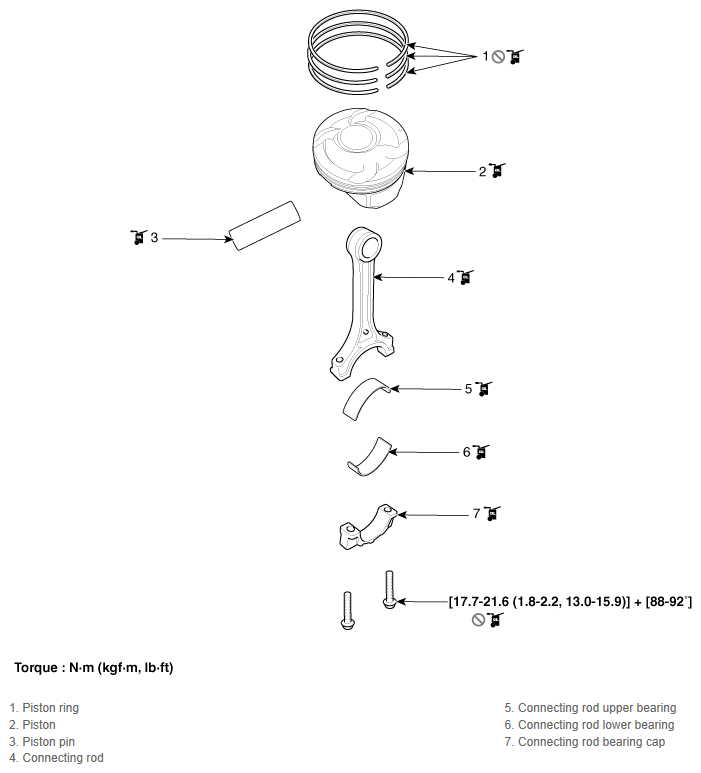

Fig 2: Cylinder Block Components With Torque Specification (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
