Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.
Adjust the clutch switch.
1. Adjust the gab by rotating the adjust nut (A) to satisfy the standard gap range.
  Standard Gap Range:

  0.5 - 1.0 mm (0.0197 - 0.0394 in.)
2. Tighten the nut (B) with the specified torque.
  Tightening Torque:

  7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

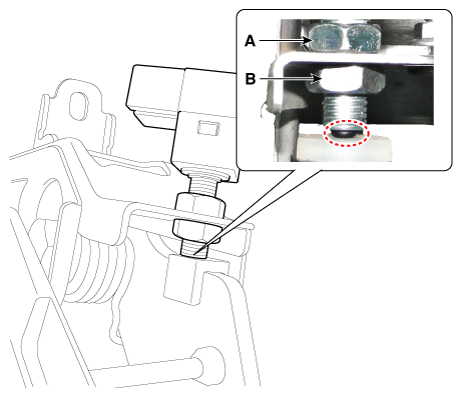

  Fig 1: Locating Adjust Nut
  Courtesy of KIA MOTORS AMERICA, INC.
