Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

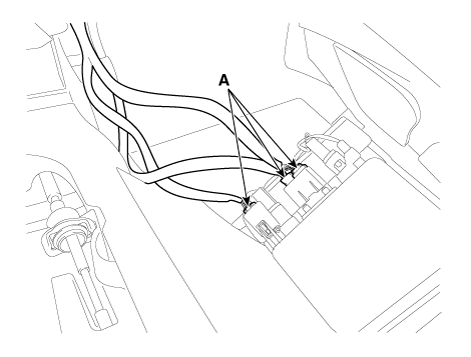

Disconnect the connectors (A) from the floor console assembly.

Fig 1: Floor Console Assembly Connectors
Courtesy of KIA MOTORS AMERICA, INC.

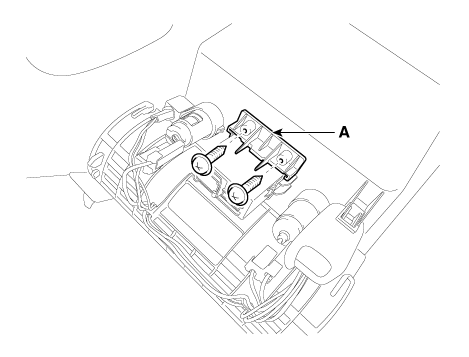

Remove the Multi-Media bracket (A) after loosening the mounting screws (2EA).

Fig 2: Multi-Media Bracket With Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Remove the Multi-Media jack (A) after pushing the Multi-Media jack in the direction of the arrow.

Fig 3: Pushing Multi-Media Jack

Courtesy of KIA MOTORS AMERICA, INC.
