Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Remove the crankshaft damper pulley.
(Refer to Drive Belt System - "CRANKSHAFT DAMPER PULLEY ")

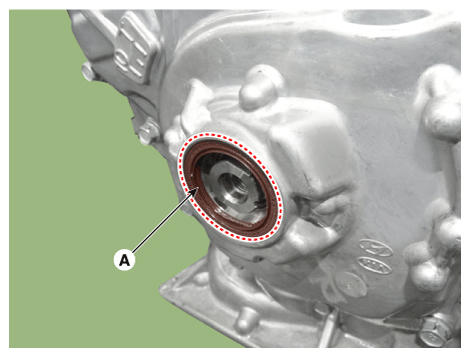

Remove the front oil seal (A).

Fig 1: Removing Front Oil Seal
Courtesy of KIA MOTORS AMERICA, INC.
Apply engine oil to a new oil seal lip & outer surface.
NOTE: Remove any debris from the lip portion of the oil seal.

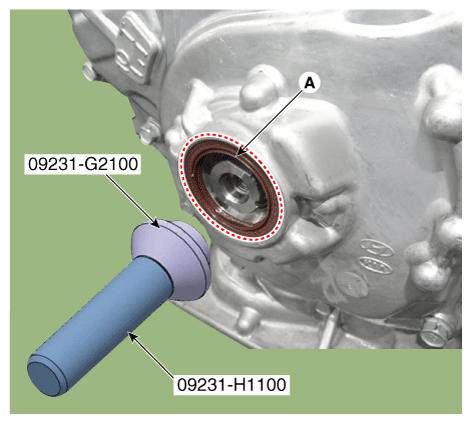

Using the SST (09231-G2100, 09231-H1100), install the front oil seal (A).

Fig 2: Installing Front Oil Seal
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Always use new oil seal.
Install the crankshaft damper pulley.

(Refer to Drive Belt System - "CRANKSHAFT DAMPER PULLEY ")
