Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear wheel & tire.
Tightening Torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)
Release the parking brake lever and parking brake cable is loose.

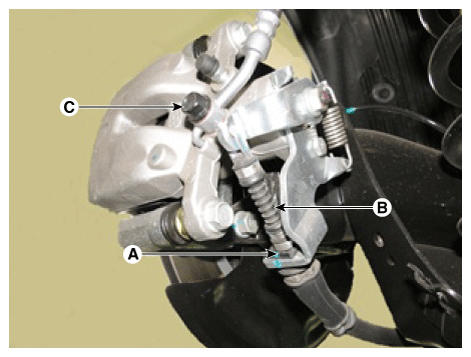

Remove the parking brake cable (A), after removing the clip (B).

Fig 1: Locating Parking Brake Cable, Hose Eyebolt And Clip
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Parking brake lever in the car must be in fully loosened position.
Remove the hose eyebolt (C).
Tightening Torque:

Brake hose to caliper:

24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb.ft)

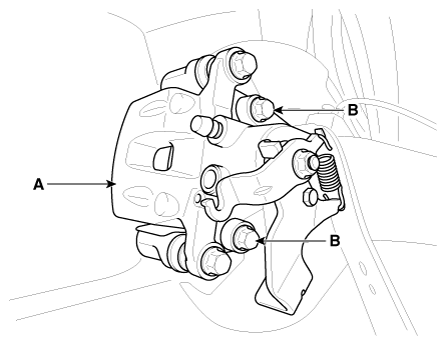

Loosen the caliper mounting bolts (B), then remove the rear caliper assembly (A).
Tightening Torque:

Caliper assembly to carrier (B):

63.7 - 73.5 N.m (6.5 - 7.5 kgf.m, 47.0 - 54.2 lb.ft)

Fig 2: Locating Rear Caliper Assembly And Caliper Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

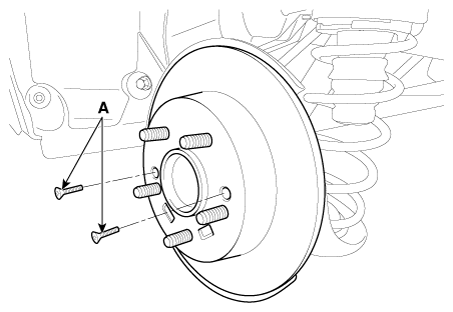

Remove the rear brake disc by loosening the screws (A).
Tightening Torque:

4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb.ft)

Fig 3: Locating Rear Brake Disc Screws
Courtesy of KIA MOTORS AMERICA, INC.
