Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the battery (A) and ECM (B).

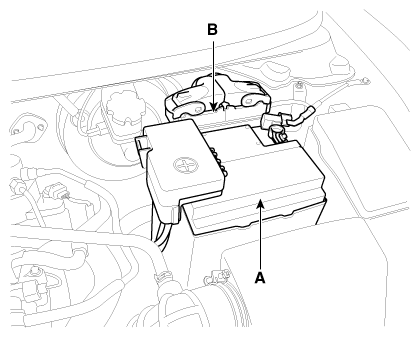

Fig 1: Locating Battery And ECM
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the brake fluid level switch connector (A), and remove the reservoir cap.

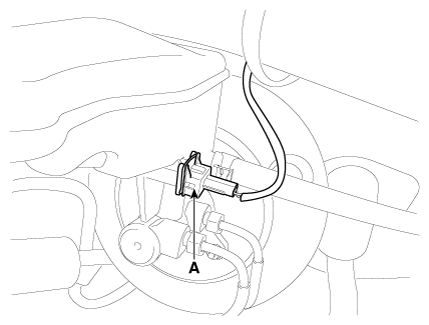

Fig 2: Locating Brake Fluid Level Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the brake fluid from the master cylinder reservoir with a syringe.
CAUTION:
- Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.
Disconnect the brake tube (A) from the master cylinder by loosening the tube flare nut.
Tightening Torque:

ABS: 12.7 - 16.7 N.m (1.3 - 1.7 kgf.m, 9.4 - 12.3 lb.ft)

ESC: 18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb.ft)

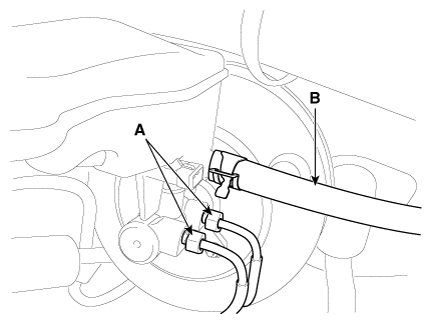

Fig 3: Locating Brake Tube And Clutch Hose
Courtesy of KIA MOTORS AMERICA, INC.
Remove the clutch hose (B). [MT only]
Remove the master cylinder (B) from the brake booster after loosening the mounting nuts (A).
Tightening Torque:

9.8 - 15.7 N.m (1.0 - 1.6 kgf.m, 7.2 - 11.2 lb.ft)

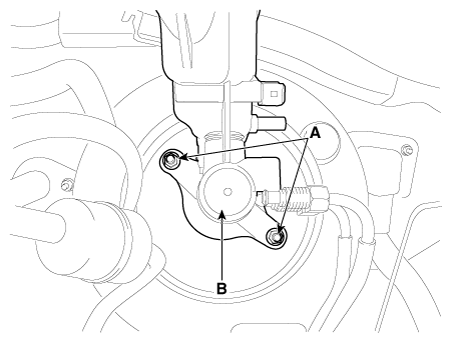

Fig 4: Locating Master Cylinder And Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.
